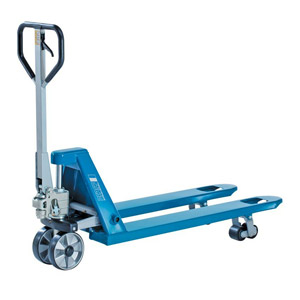

Pallet Trucks

For the professional transportation of palletised goods and box pallets under demanding conditions. With a capacity of 2500 kg

Features

Ergonomic safety control handle for one-hand operation of lifting, driving and lowering.
Ergonomic rubber control handle for safe handling.
Low maintenance hydraulic pump with hard chromium plated piston.
Frame and forks in robust steel construction, adjustable connecting rods, especially hardened axles and the high quality powder coating ensure a long life expectancy.

Model	HU 25-115 TS	HU 25-115 TS	HU 25-115 TS	HU 25-115 TS	HU 25-115 ES
Art.-No.	034527100	034527101	034527108	034527130	034527106
Capacity, kg	2500	2500	2500	2500	2500
Load center c, mm	600	600	600	600	600
Weight, kg	75	79	79	68	84
Tyre type*	VG/PA	VG/PUR	PUR/PUR	PA/PA	VG/PUR
Steering rollers, mm	200 x 50	200 x 50	200 x 50	200 x 50	200 x 50
Load rollers, mm	82 x 70	82 x 70	82 x 70	80 x 70	82 x 93
Number of wheels/load rollers	2/4	2/4	2/4	2/4	2/2
Stroke h3, mm	115	115	115	115	115
Height of control handle h14, mm	1200	1200	1200	1200	1200
Fork height lowered h13, mm	85	85	85	85	85
Overall length L1, mm	1535	1535	1535	1535	1535
Fork height s, mm	45	45	45	45	45
Fork width e, mm	160	160	160	160	160
Fork length l, mm	1150	1150	1150	1150	1150
Outside dimension of forks b1, mm	540	540	540	540	540
Inside dimension of forks b3, mm	220	220	220	220	220
Ground clearance m1, mm	40	40	40	40	40
Aisle width pallet Ast, mm	1815	1815	1815	1815	1815
Turning circle radius Wa, mm	1330	1330	1330	1330	1330
