Tiger Chain Block
The TCB11 is manufactured from the highest quality steel materials, offering a lightweight, compact and rugged construction, producing an exceptionally strong product resistant to impact damage. The exceptional short head room allows for easy installation where every centimetre must be achieved. Using only the highest quality materials precisely machined in our own factory, the TCB11 is the ideal block for long term use with less maintenance and servicing costs. These units meet and exceed all the requirements within BS EN 13157:2004
Main Features
Range from 500kg – 20000kg
Rugged steel body construction
Lightweight and portable
Double cover protection for brake chamber
Drop forged & heat treated alloy hooks
High quality alloy calibrated load chain
Safe reliable twin pawl mechanical brake
Guaranteed light load protection
Heat treated alloy steel triple spur gears and pinion shaft
Operating temperature of -50°C to +50°C
Proof tested to 1.5 times rated capacity
Can be chained to meet your exact requirements
Individual spares readily available

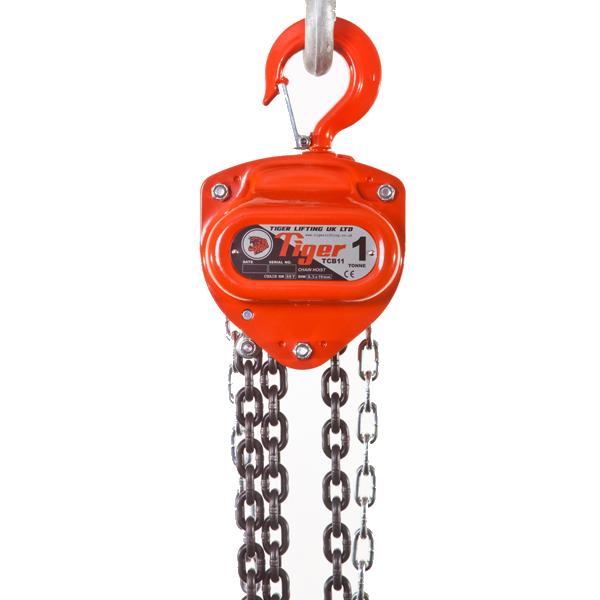

Tiger TCB11 Heavy Duty Chain Block

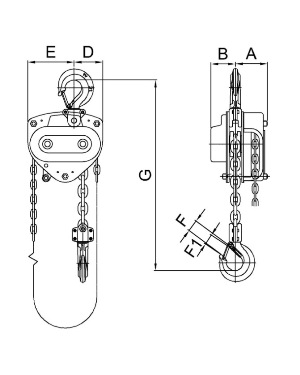

 0.5t – 2.0t & 3.0t single |

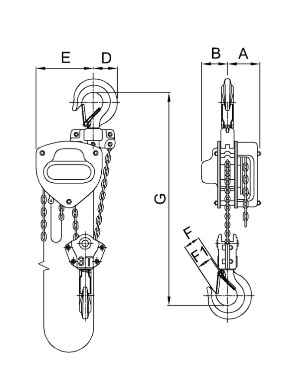

 3.0t twin |

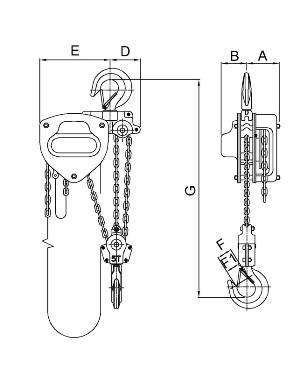

 5.0t |

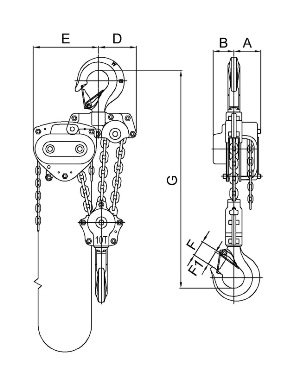

 10.0t |

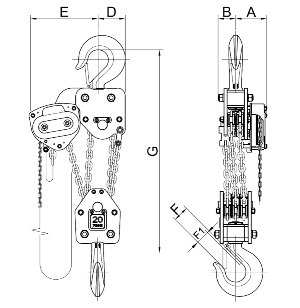

 20.0t |
|
|
Product Code |
Capacity (tonne) |
Effort (kg) |
Dimensions (mm) |
Load Chain |
Standard HOL (m) |
Mass Kg @ std HOL |
|||||||
|
A |
B |
D |
E |
F |
F1 |
G |
Diameter (mm) |
No. of falls |
|||||
|
CB-0050 |
0.5 |
21 |
89 |
67 |
50 |
80 |
30 |
26 |
305 |
ø6.3 |
1 |
3 |
10.8 |
|
CB-0100 |
1.0 |
25 |
89 |
67 |
63 |
87 |
33 |
28 |
340 |
ø6.3 |
1 |
3 |
12.0 |
|
CB-0150 |
1.5 |
32 |
93 |
73 |
75 |
105 |
38 |
34 |
385 |
ø7.1 |
1 |
3 |
16.3 |
|
CB-0200 |
2.0 |
34 |
98 |
77 |
85 |
115 |
43 |
38 |
420 |
ø8.0 |
1 |
3 |
20.6 |
|
CB-020L |
2.0 |
32 |
93 |
73 |
75 |
105 |
43 |
38 |
399 |
ø7.1 |
1 |
3 |
16.5 |
|
CB-0300 |
3.0 |
38 |
109 |
84 |
98 |
157 |
43 |
38 |
550 |
ø10.0 |
1 |
3 |
32.5 |
|
CB-030T |
3.0 |
34 |
93 |
73 |
60 |
150 |
43 |
38 |
465 |
ø7.1 |
2 |
3 |
24.8 |
|
CB-0500 |
5.0 |
37 |
98 |
77 |
120 |
210 |
57 |
52 |
575 |
ø8.0 |
3 |
3 |
39.0 |
|
CB-1000 |
10.0 |
40 |
109 |
84 |
153 |
263 |
60 |
54 |
660 |
ø10.0 |
3 |
3 |
62.3 |
|
CB-2000 |
20.0 |
43 |
160 |
90 |
140 |
350 |
90 |
70 |
1050 |
ø10.0 |
6 |
3 |
180.0 |
