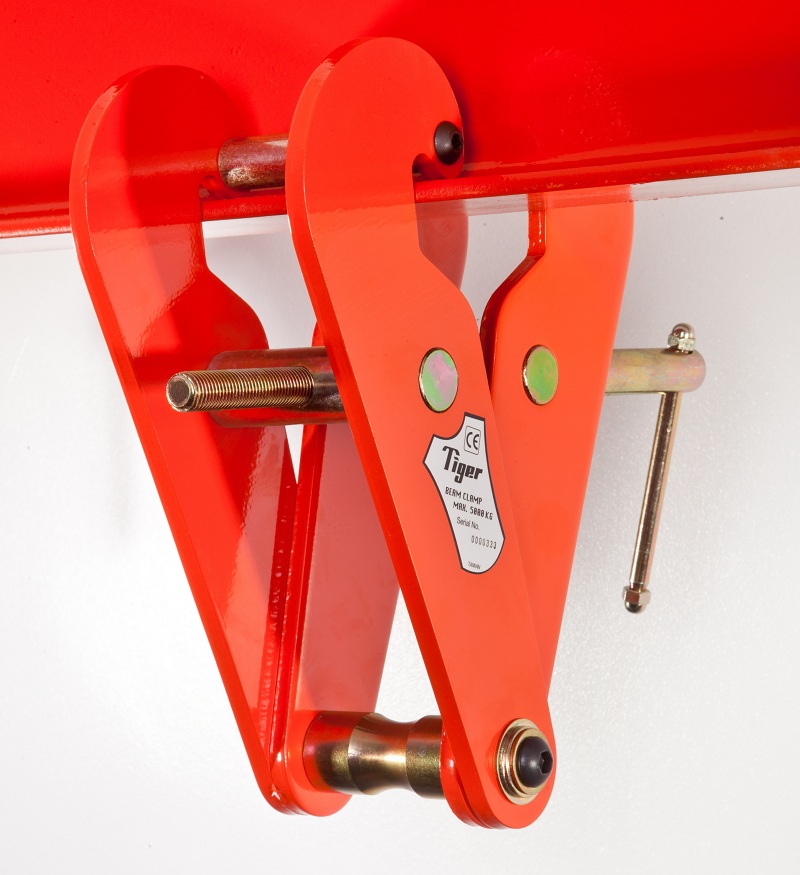

Tiger Heavy Duty Beam Clamp
The Tiger heavy duty beam clamp is suitable for attachment to steel beams as a semi-permanent lifting point
- The beam clamp is fitted with a screw spindle which allows easy adjustment and high clamping force to the various flange sizes within its capacity
- Low headroom because of the built in suspension bar
- Safety factor up to 5 times SWL
- Range from 1.0t to 5.0t
|
Product Code |
Capacity (tonne) |

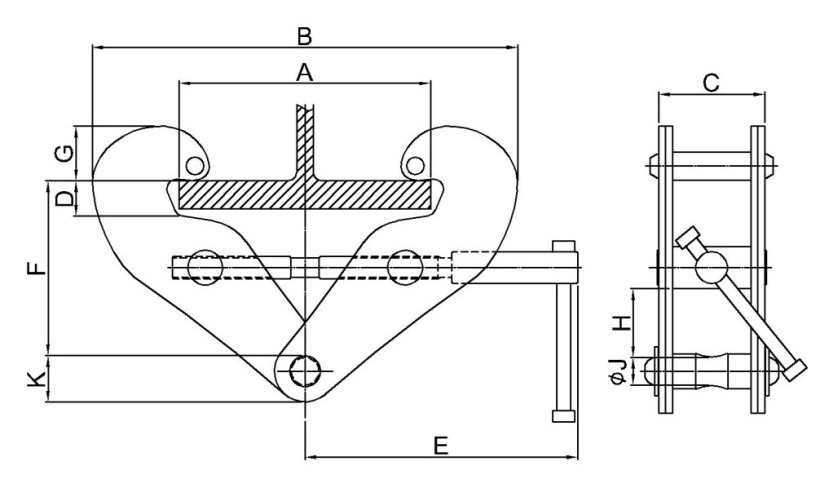

Dimensions (mm) |
Weight (kg) |
||||||||
|
A |
B |
C |
D |
E |
F |
G |
ØJ |
K |
|||
|
BC-0100 |
1.0 |
72-210 |
182-328 |
77 |
26 |
190 |
144-117 |
52-38 |
Ø20 |
34 |
4.0 |
|
BC-0200 |
2.0 |
75-210 |
182-328 |
85 |
26 |
190 |
144-117 |
52-38 |
Ø20 |
34 |
4.6 |
|
BC-0300 |
3.0 |
73-305 |
214-460 |
107 |
35 |
240 |
224-179 |
58-40 |
Ø22 |
42 |
8.4 |
|
BC-0500 |
5.0 |
73-305 |
214-460 |
121 |
35 |
240 |
220-175 |
58-40 |
Ø28 |
45 |
10.0 |
