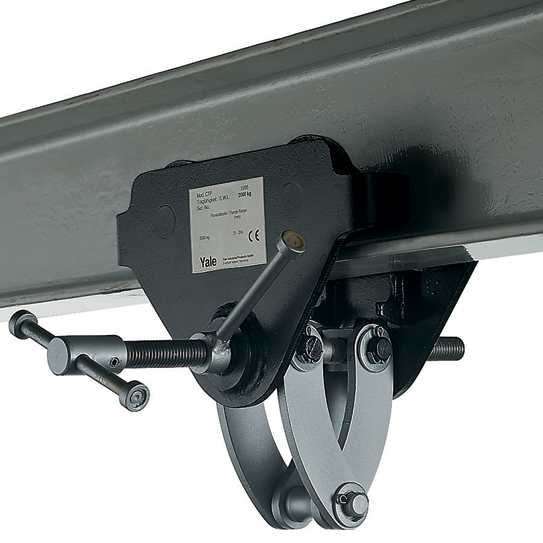

CTP 'Integral' Travel Trolley Beam Clamps
The easy installation to any beam makes the CTP suitable for fixing to any hoists, pulleys and loads you wish to move. It can be adjusted quickly to the beam width by turning the main spindle. Safety is ensured by the special locking lever.
The spindle and snap-pin stops are galvanised to protect again corrosion.
The CTP-2A trolley clamp has undergone rigorous testing at the national engineering laboratory and complies with EN 795 Class B and BS EN 3795 and is therefore suitable for man riding applications.
|
Model |
Capacity (SWL) kgs |
Beam width mm |
Min. curve radius mm |
Weight kgs |
|---|---|---|---|---|
| CTP - 1A | 1000 | 60 - 150 | 0.6 | 2.5 |
| CTP - 2A | 2000 | 75 - 200 | 0.9 | 9.9 |
| CTP - 2M | 2000 | 75 - 200 | 0.9 | 9.9 |
| CTP - 2B | 2000 | 200 - 300 | 0.9 | 10.3 |
| CTP - 3A | 3000 | 75 - 200 | 1.15 | 17.5 |
| CTP - 3B | 3000 | 200 - 320 | 1.15 | 19.5 |
Contact us here for more information or call our friendly sales team on +44 (0)1472 358 310
