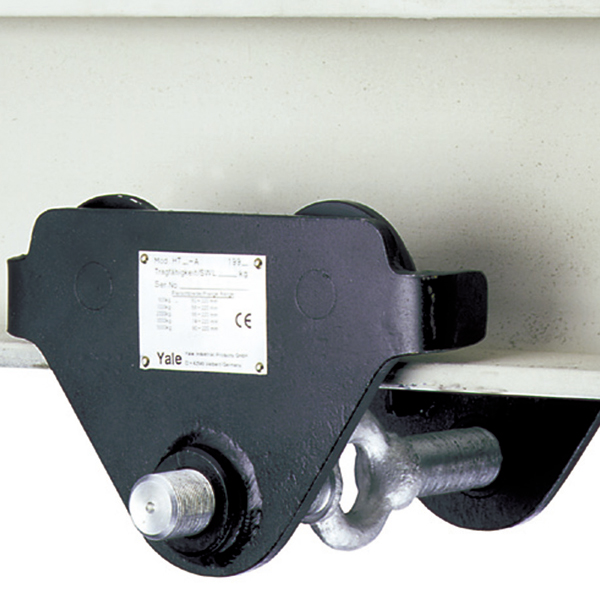

HTP 'Standard' Push Travel Trolleys
2.5 metre hand chain drop is fitted as standard, to suit 3 metre HOL.
Optional track clamp for HTP trolleys 500 - 5000kgs is available.
Optional lock nuts for HTP trolleys 500 - 5000kgs are available.
|
Capacity (SWL) Kgs |
Beam Width mm |
Weight Kgs |
Capacity (SWL) Kgs |
Beam Width mm |
Weight Kgs |
|---|---|---|---|---|---|
|
Type 'A' |
Type 'B' |
||||
| 500 | 50 - 220 | 8.0 | 500 | 160 - 300 | 10.6 |
| 1000 | 58 - 220 | 9.0 | 1000 | 160 - 300 | 12.0 |
| 2000 | 66 - 220 | 16.0 | 2000 | 160 - 300 | 19.3 |
| 3000 | 74 - 220 | 32.0 | 3000 | 180 - 300 | 35.8 |
| 5000 | 90 -220 | 48.0 | 5000 | 180 - 300 | 52.2 |
